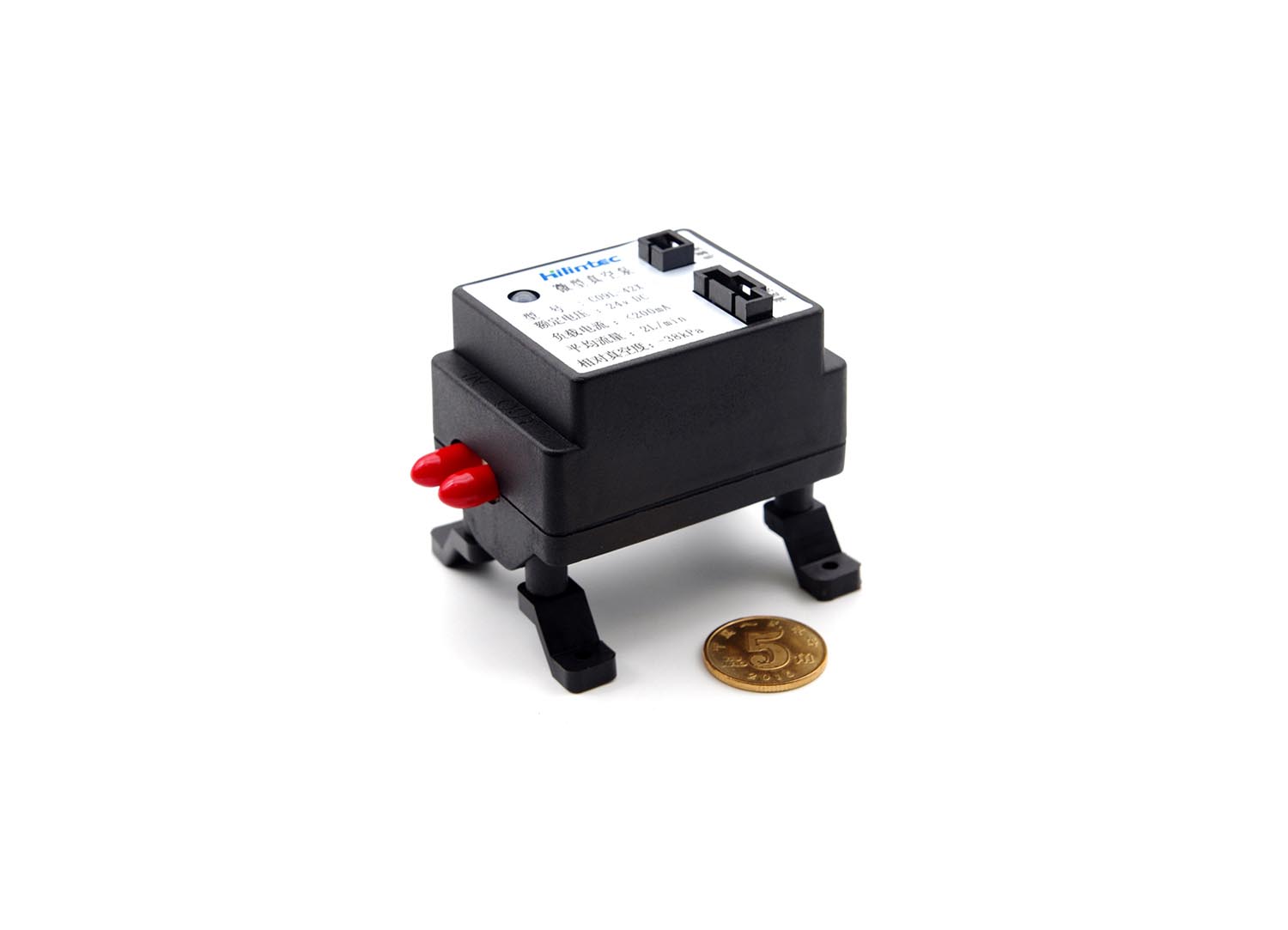

C09 Diaphragm Mini Air Pump for Vacuum

C09 series miniature air pump is a compact vacuum pump with digital flow control function. It has a small dimensions, long service life, low flow pulsation. Connecting to its suction port can realize the function of suction or vacuum. C09 series miniature air pump is a diaphragm air pump that can transfer air/gas by a moving diaphragm to change the volume of the pump chambers.

C09 is a electric diaphragm mini air pump for gas sampling and vacuuming, It is a high-end micro air pump with three pump chambers. This structure has the advantages of low flow pulsation and stable flow output. It is especially suitable for scenarios where low-pulsation gas sampling is required. It also has benifits like low electromagnetic interference, low noise level and vibration.

Low Gas Flow Pulsation

Flow pulsation is a disadvantage of reciprocating positive displacement pumps. It is a high-end micro air pump with three pump chambers. This structure has the advantages of low flow pulsation and stable flow output. It is especially suitable for scenarios where low-pulsation gas sampling is required.

Mini Air Pump

This air pump can be used to transport air and other gaseous media, can be used to vacuum, or to smoothly transport gas.

Compact Size

The product weighs about 90g, and the overall size is about 64x43x48mm (this size does not include shock-absorb feet).It has three pump chambers in a very small structureIf you need a more reliable air pump, you can refer to the C26 mini pump model.

Speed Control Function

There are three types of speed control functions available for this series of pumps: knob speed control, PWM speed control, and frequency speed control. Closed-loop control technology helps to keep the flow consistent when the load changes.

Anti-loosening Connectors

The plug is connected with a buckle to make the connection part more tight and not easy to fall off.

Working Status Indicator

Integrated speed indication function, visually understand the running status of the pump according to the flashing frequency of the indicator light.

Brushless Motor

This model mini air pump is driven by brush-less motors which have the advantages of long service life, low interference and high reliability.

Protection

Equipped with overheating protection, overload protection, power supply under-voltage, over-voltage protection and reverse connection protection function to prevent accidental damage to the pump.

Digital Signal Control

The circuit input adopts all digital signal control with strong anti-interference ability, stable and reliable work.

Closed Loop Speed Control

The internal closed-loop control algorithm is used to monitor and adjust the motor speed in real time to keep the speed and output stable

Speed Control Function

The flow rate of the pump can be changed by adjusting the motor speed. There are three types of speed control functions available for this series of pumps: knob speed control type, PWM speed control type and frequency speed control type. Please refer to Chapter 5 Electrical Connection for specific usage of different speed adjustment methods.

Warning Function

Feed back the working status through working status indicator light.

  1. When the light remains green, it means that the power supply isnormal and the pump is not working;
  2. When the green light flashes, it means the pump is working normally; the faster the green light flashes, the higher the pump speed, the greater the output flow;
  3. When the light remains red, it means the pump is working abnormally;
  4. When the positive and negative poles are reversed, the indicator light is off, the pump does not work, but it will not damage the pump.
